3D software for lift planning

Planning a heavy lift is a demanding task. But even supposedly simple lifting operations using mobile and crawler cranes can turn out to be more complicated than initially expected. Crane Planner 2.0 helps you to take all eventualities into account and to find solutions in advance so that you can carry out your lift in the best possible way.

The combination of an attractive, three-dimensional user interface and the exact machine data of the load moment limitation (LML / LICCON) is unique. The data displayed in Crane Planner 2.0 are determined by exactly the same calculation logic as the live data of the real mobile and crawler cranes. At the same time, important key figures such as ground bearing pressures, ground force, loads and centres of gravity are determined. A new calculation is carried out with every change in configuration, load or geometry.

Why you should plan a lift, which special features have to be considered and how the Crane Planner 2.0 can support you is described in the new podcast from 'Engineering Matters'.

Podcast

With Crane Planner 2.0, Liebherr provides you with modern lift planning software. There is no need for expensive licences, elaborate hardware and extensive training for CAD software. Our engineers and software developers work daily on new functions and on the integration of further Liebherr cranes. The Crane Planner 2.0 updates are provided to you regularly as part of the selected licence.

Licences and trial

Do you want to test all the functions and machines first?
You can request a 30-day trial licence free of charge in the licence shop.
All licences as well as the Virtual Reality add-on are available in the licence shop.

Mobile cranes
Crawler cranes
Duty cycle crawler cranes

LTM series

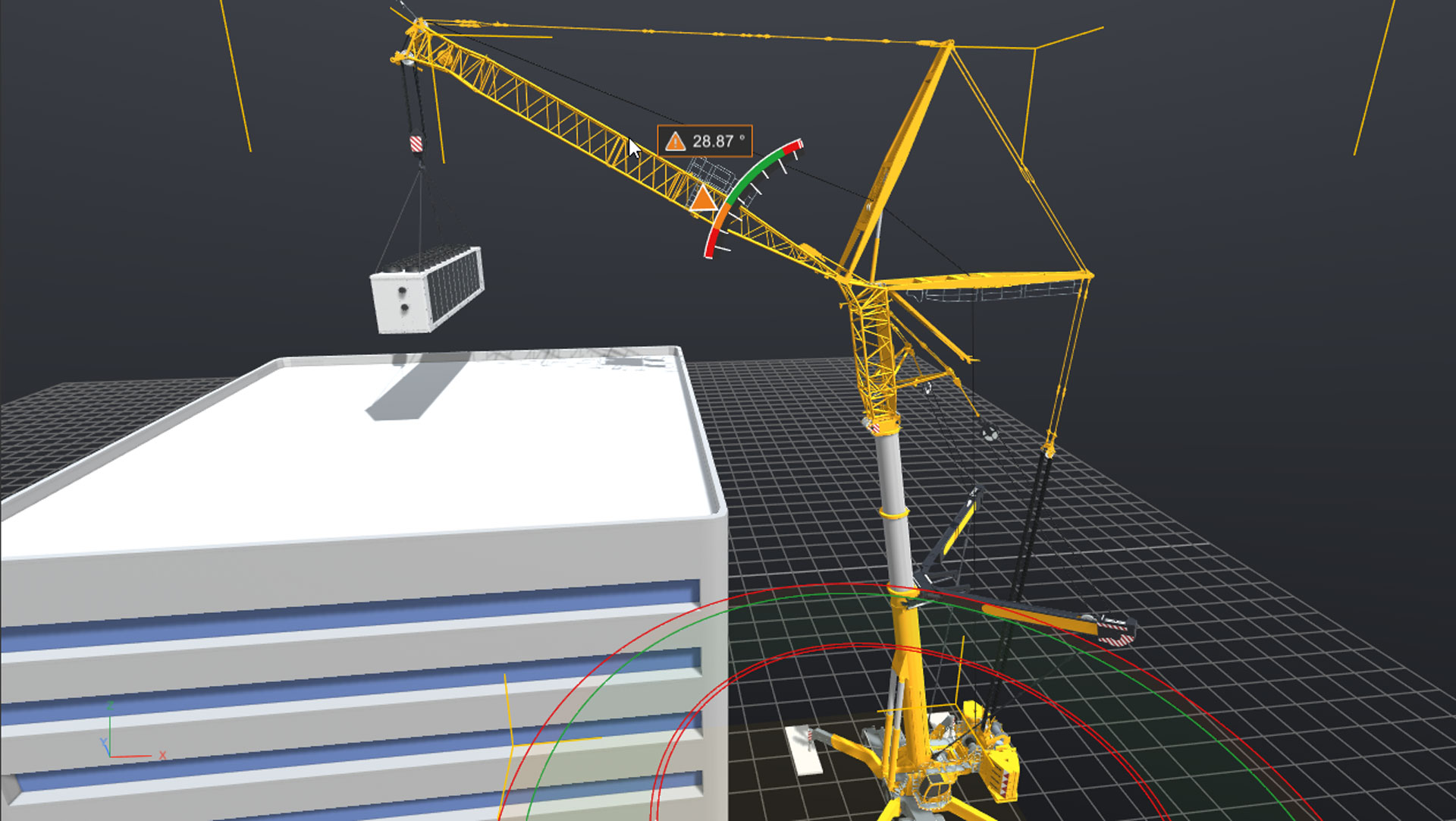

The available telescopic mobile cranes can be displayed in all lifting mode configurations. When touching the main boom or jib, the possible radius of movement is displayed. The traffic light colours red, yellow and green visualise the exact load capacities of the corresponding machine when the load is attached.

More information

LR series

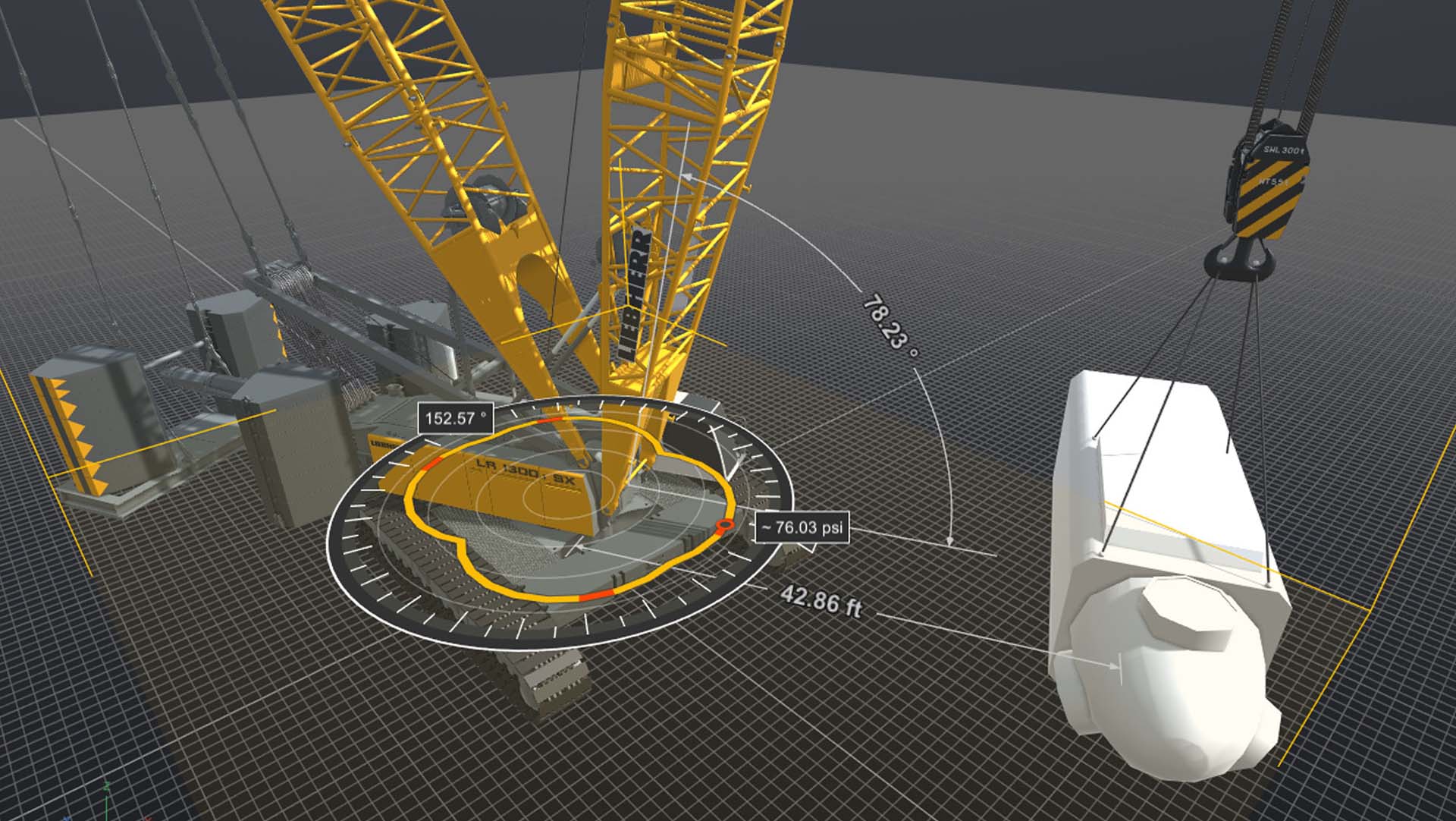

All Liebherr crawler cranes up to a lifting capacity of 300 t are available in Crane Planner 2.0. When slewing the uppercarriage, the ground pressure distribution is displayed over the entire 360°. The areas with the highest values are marked in red and easy to recognise.

More information

HS series
From the small HS 8040.1 to the large HS 8300.1, all HS machines are ready for lift planning. With the positioning tool, Liebherr machines can be precisely aligned with other objects in the scene. The most important dimensions are visible.
